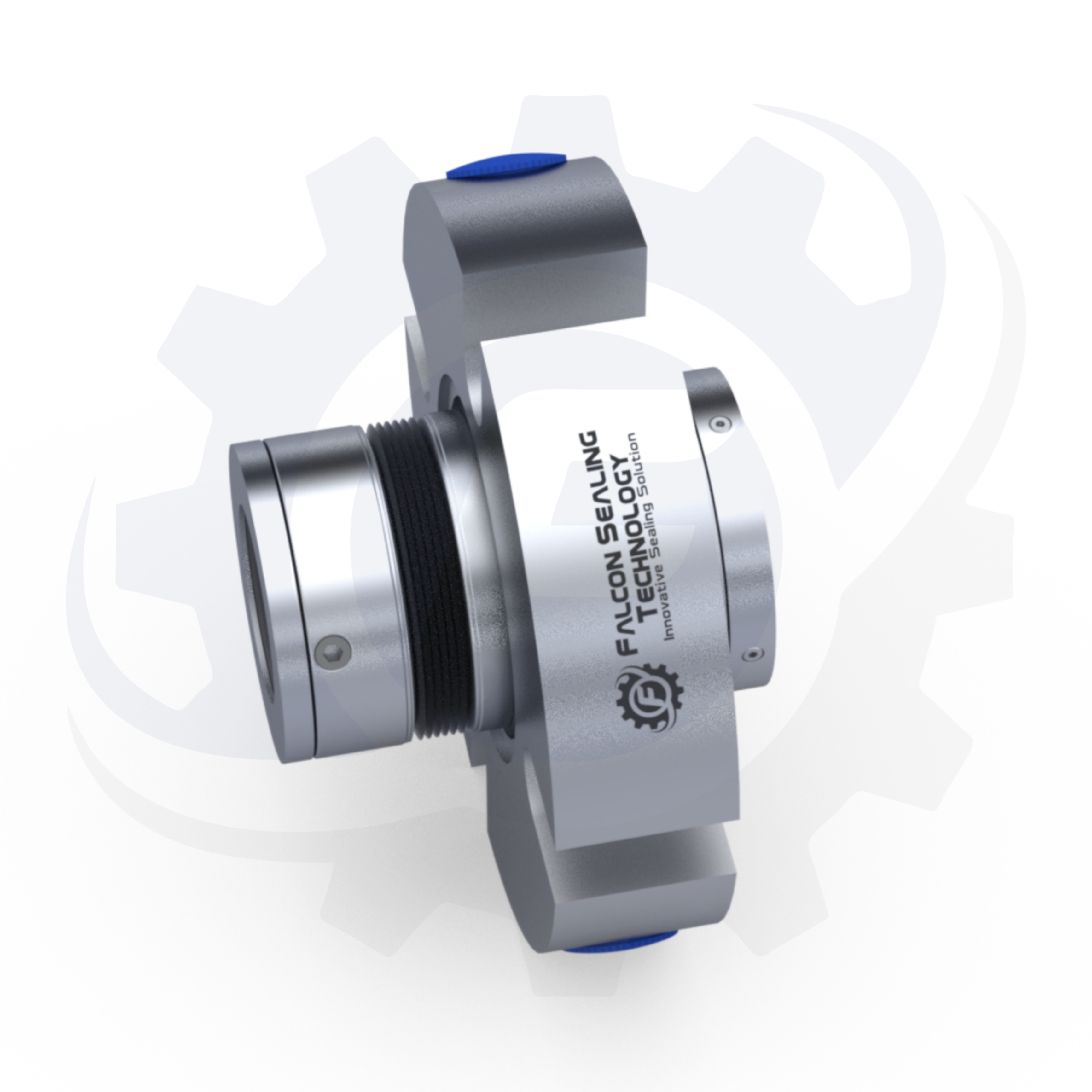

METAL BELLOW CARTRIDGE SEAL
FS-CTMB62
FS-CTMB62 Grafoil Packing Cartridge mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps and other equipment with rotating shaft. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces TC and SiCElastomer Flexible GraphiteEnd fitting MOC SS 316, HAST-C and Carpenter 42Bellow MOC HAST-C, AM350 and Inconel -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 25 barTemperature -70°C to 350°CSpeed 3000 r.p.m. -
Salient Features
Single Acting.
Dual directional.
Inside mounted.
Inherently Balanced Mechanical Seals.
Independent of direction of rotation.
Unitized, Easy-to-Fit Design.

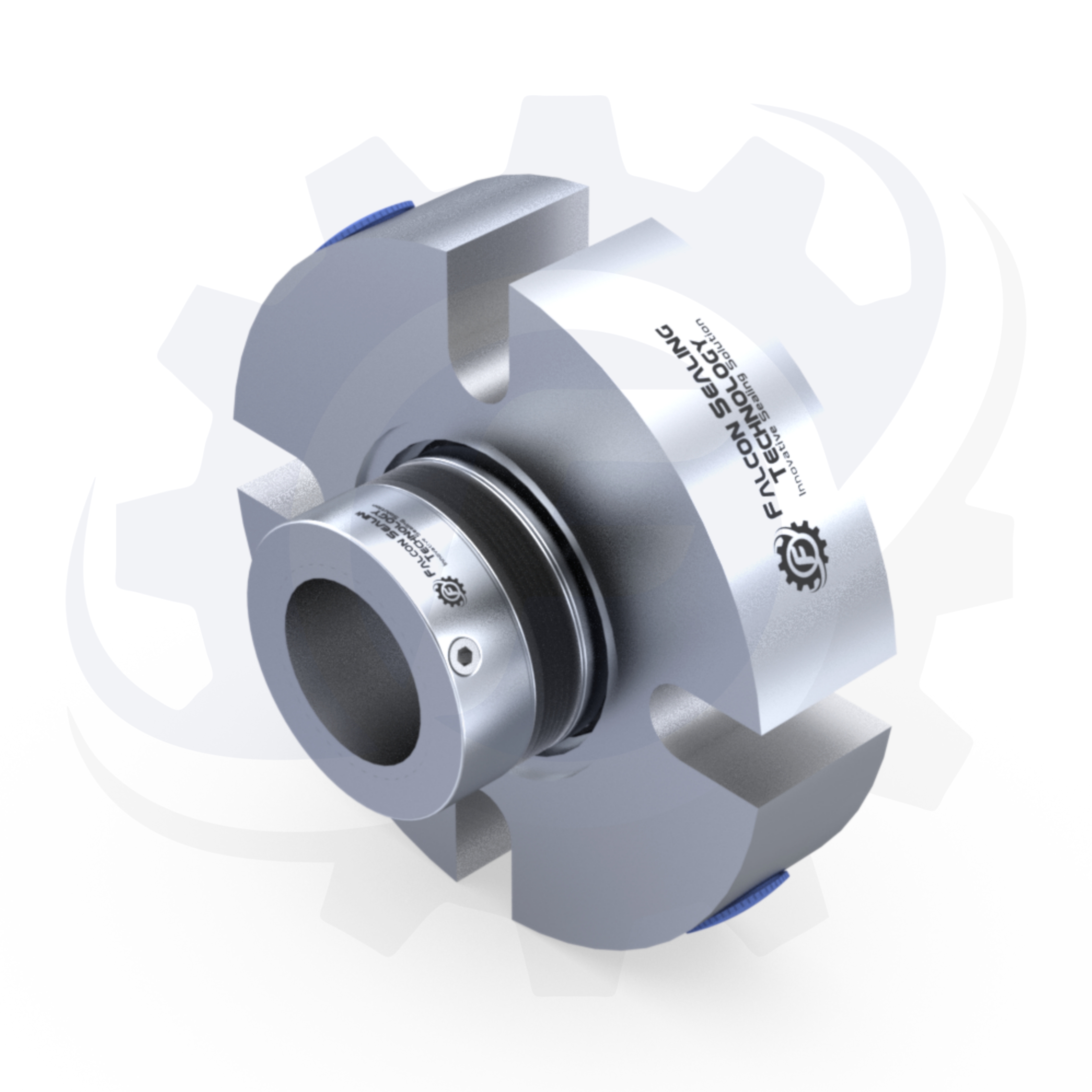

FS-CT178
SINGLE CARTRIDGE MECHANICAL SEAL
The FS-CT178 Single cartridge mechanical seal meaning it comes as a complete, self-contained unit. This design eliminates the need for technicians to manually set the seal's working length, a common source of installation errors. The "double" in its name signifies that it contains two sets of sealing faces: a primary seal and a secondary seal. These two seals are pre-mounted on a single sleeve, and the entire assembly is bolted to the pump or other rotating equipment.
-
Materials
Seal Ring Faces Cabon, TC and SiCSeat Faces SiC and TCElastomer Viton, PTFE, and FFKMEnd fitting MOC SS 316, HAST-C and Carpenter 42Bellow MOC SS 316-CHANGE OF MOC ON REQUEST -
Operating Limit
Shaft Dia 20mm to 100mmPressure Up to 15 barTemperature -30°C to 260°CSpeed 3000 r.p.m. -
Salient Features
Double seal
Balanced
Cartridge unit
Bellow Design Seals for Pressure supported and eliminates folds.
Independent of direction of rotation
METAL BELLOW CARTRIDGE SEAL
FS-CTMB62
FS-CTMB62 Grafoil Packing Cartridge mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps and other equipment with rotating shaft. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces TC and SiCElastomer Flexible GraphiteEnd fitting MOC SS 316, HAST-C and Carpenter 42Bellow MOC HAST-C, AM350 and Inconel -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 25 barTemperature -70°C to 350°CSpeed 3000 r.p.m. -
Salient Features
Single Acting.
Dual directional.
Inside mounted.
Inherently Balanced Mechanical Seals.
Independent of direction of rotation.
Unitized, Easy-to-Fit Design.
