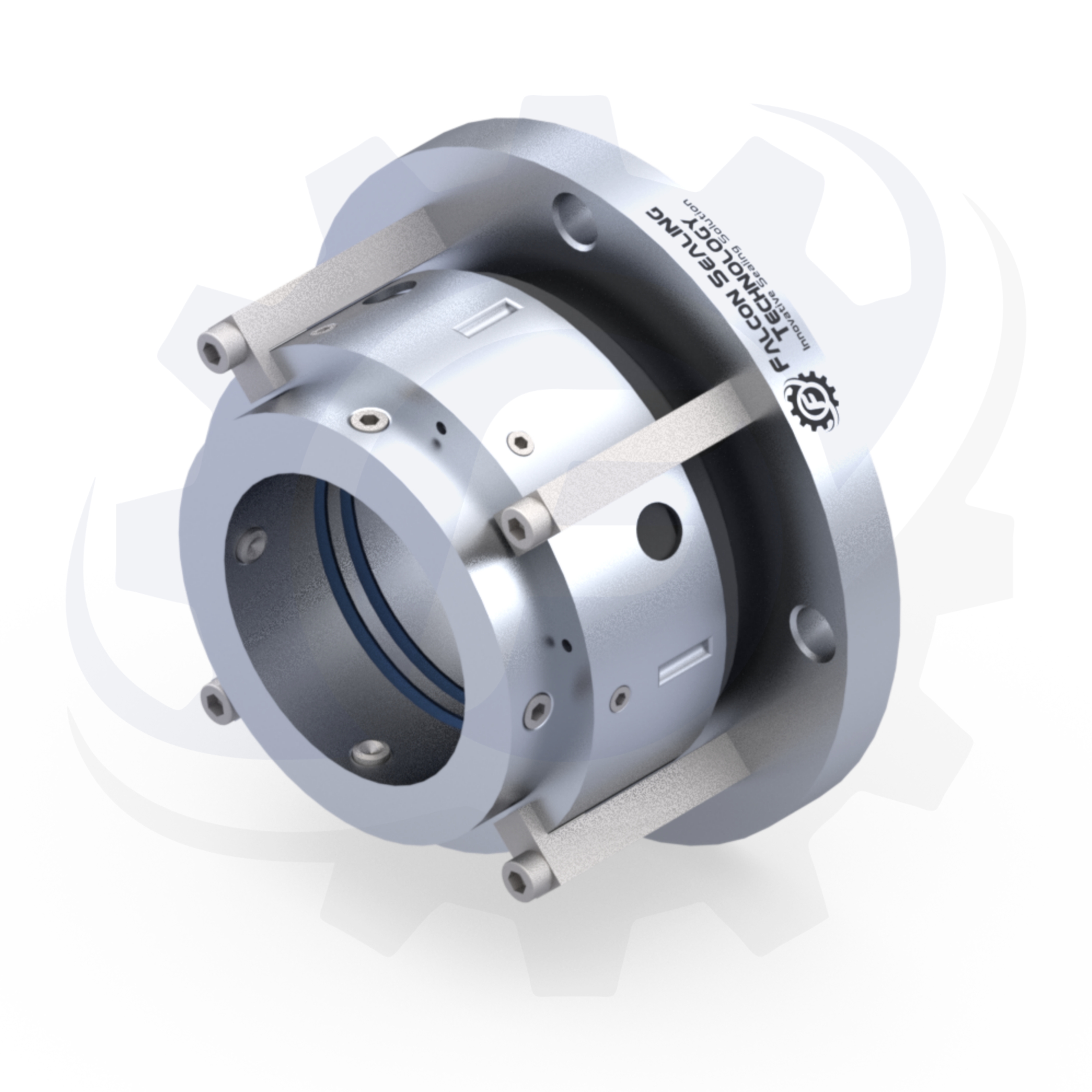

DRY RUNNING MECHANICAL SEAL
FS-AG001
FS-AG001 Dry-running mechanical seals are used for mixers, agitators and reactors for cleanability. These seals were developed for sanitary applications where product contamination from barrier fluids is unacceptable. The seals feature sloped internal surfaces to facilitate drainage and enhance cleanability, including the debris well flush ports. Internal metallic parts exposed with optional electro- polishing and all components.
-
Materials
Seal Ring Faces Spl. CarbonSeat Faces SiCElastomer Viton, TTV, FEP and FFKMMOC SS 316-CHANGE OF MOC ON REQUEST -
Operating Limit
Shaft Dia 20mm to 150mmPressure Full Vacuum to 8 barTemperature -30°C to 140°CSpeed 900 r.p.m. -
Salient Features
Single seal
Dry running
Outboard mounted
Heat trap arrangement (AG100H)
Independent of direction of rotation

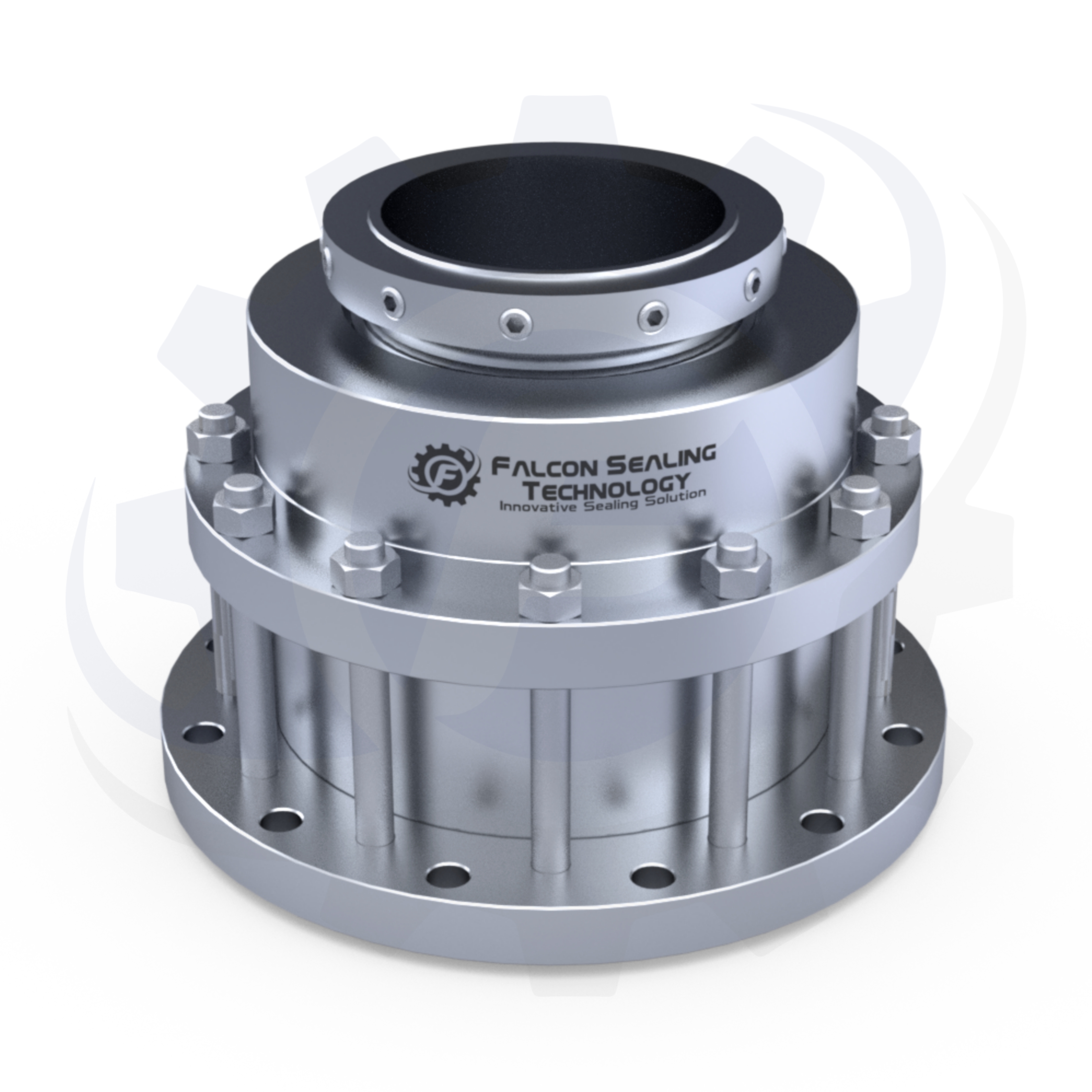

FS-AG011
AGITATOR MECHANICAL SEAL
The FS-AG011 Double Agitator SealMechanical Seals are designed for Top, Bottom and Side Entry Drives in Agitators, Mixers OR Blenders and where Non-Aggressive and Non-Hazardous Media are Sealed with the use of Cooling Liquid preventing against Dry Running. Construction of MOC designed of these Seals purpose of holding whole Rotary Parts together with the help of Snap Rings which eases while Installation and Removal of Seals.
-
Materials
Seal Ring Faces Carbon and SiCSeat Faces SiC and TCElastomer Viton, PTFE, and FFKMMOC SS 316-CHANGE OF MOC ON REQUEST -
Operating Limit
Shaft Dia 20mm to 150mmPressure Full Vacuum to 8 barTemperature -30°C to 150°CSpeed 300 r.p.m. -
Salient Features
Single seal
Cartridge unit
Bearing arrangement (Optional)
Heat trap arrangement (Optional)
Independent of direction of rotation
